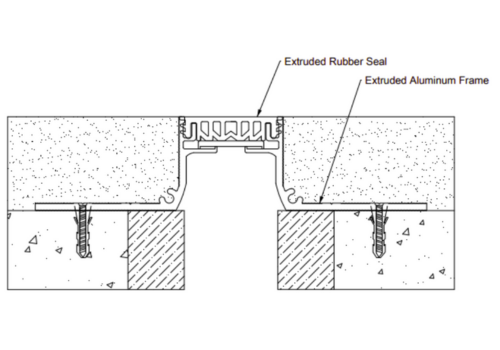

Gambar Teknis
DDJ
Flush Thin Line Covers
Spesifikasi Umum
| Joint Width (mm) | 25 | 50 |
| Exposed Surface (mm) | 31 | 47 |
| Movement Capacity (mm) | 12 | 25 |
Fitur
- Vapor barrier opsional dapat diselipkan ke dalam rangka untuk memudahkan pemasangan
- Segel fleksibel memberikan kesesuaian yang aman namun tetap mempertahankan fleksibilitas
- Menampilkan desain tersembunyi yang meminimalkan garis pandang
- Penutup sambungan ekspansi termal antar-lantai
- Desain blockout di bawah lantai mudah beradaptasi dengan berbagai jenis finishing lantai
- Dirancang khusus untuk lebar sambungan kecil
Technical Drawing
DDJ
Flush Thin Line Covers
General Specification
| Joint Width (mm) | 25 | 50 |
| Exposed Surface (mm) | 31 | 47 |
| Movement Capacity (mm) | 12 | 25 |
Features
- An optional vapor barrier slides into the frame for easy installation
- The flexible seal provides a secure fit and yet retains flexibility
- Featuring a recessed design that minimizes sight lines
- Floor to Floor thermal expansion Joint Cover
- The below-floor blockout design adapts easily to many different floor finishes
- Special designed for small joint width
