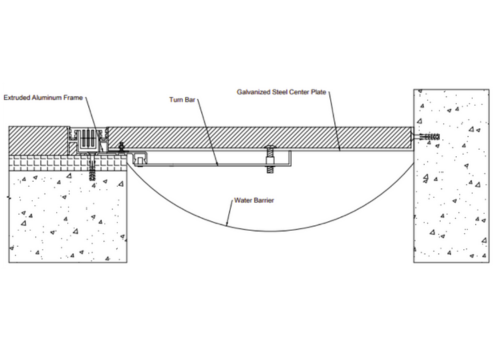

Gambar Teknis
QDSJH
Flush Twin Line Covers
Spesifikasi Umum
| Joint Width (mm) | 100 | 150 | 200 | 250 | 300 |
| Exposed Surface (mm) | 168 | 218 | 268 | 318 | 368 |
| Movement Capacity (mm) | 13 | 13 | 13 | 13 | 13 |
Fitur
- Gasket karet flush meminimalisir garis pandang
- Desain segel ganda (dual seal) menyediakan rentang pergerakan yang diperlukan
- Dilengkapi dengan sistem batang pemusat (centering bar system)
- Gasket tersedia dalam berbagai pilihan warna
- Desain snap-fit untuk perakitan di lokasi yang mudah
- Hemat biaya untuk berbagai lebar sambungan
- Ideal untuk karpet, vinil, ubin keramik, dan finishing lantai lainnya
- Segel fleksibel memberikan kesesuaian yang aman namun tetap mempertahankan fleksibilitas optimal
Technical Drawing
QDSJH
Flush Twin Line Covers
General Specification
| Joint Width (mm) | 100 | 150 | 200 | 250 | 300 |
| Exposed Surface (mm) | 168 | 218 | 268 | 318 | 368 |
| Movement Capacity (mm) | 13 | 13 | 13 | 13 | 13 |
Features
- Flush rubber gasket minimizes sightline
- Dual seal design provides necessary movement ranges
- Featuring a centering bar system
- Gaskets available in many coordinating designer colors
- Snap-fit design for easy on-site assembly
- Be cost-effective for many different joint width
- Ideal for carpet, vinyl, ceramic tile and other floor finishes
- Flexible seals provide a secure fit and yet retain optimal flexibility
