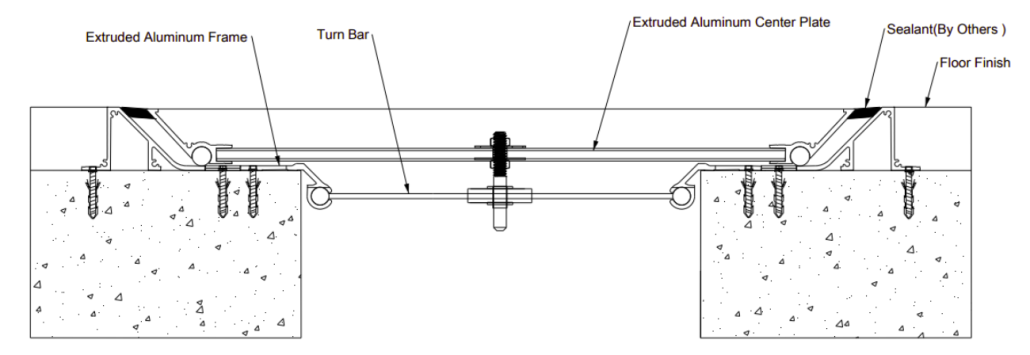

Gambar Teknis

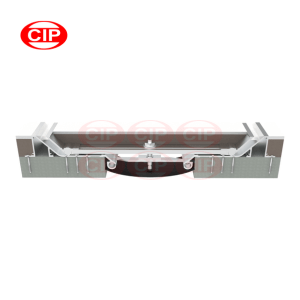

DSZB
Flush Seismic Floor Covers
Spesifikasi Umum
| Joint Width (mm) | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Exposed Surface (mm) | 520 | 590 | 670 | 745 | 820 | 895 | 970 |
| Movement Capacity (mm) | 230 | 300 | 400 | 475 | 550 | 625 | 700 |
Fitur
- Alur anti-selip membuat sambungan antara screed dan dasar aluminium jauh lebih kuat, mencegah lapisan dekoratif mudah terlepas.
- Proteksi tepi eksklusif menghilangkan kerusakan dan keretakan pada paver.
- Desain pan modular menghilangkan defleksi dan keretakan, sehingga lebih baik untuk pembebanan dan koneksi keseluruhan sistem.
- Desain khusus untuk kebutuhan pergerakan besar.
- Bantalan aluminium bulat memungkinkan penutup bergerak dengan lancar dan mudah melindungi sistem saat ekspansi dan kompresi.
Technical Drawing
DSZB
Flush Seismic Floor Covers
General Specification
| Joint Width (mm) | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Exposed Surface (mm) | 520 | 590 | 670 | 745 | 820 | 895 | 970 |
| Movement Capacity (mm) | 230 | 300 | 400 | 475 | 550 | 625 | 700 |
Features
- Anti slip grooves make the connection between screed and aluminum base much more stronger in case the decorative level will get off easily
- Exclusive edge protection eliminates chipping and cracking pavers
- Modular pan’s design eliminates deflection and cracking. It’s better for loading and connection of the whole system
- Special design for big movement inquiry
- Round aluminum bearing allows cover to move smoothly and easy to protect system when expansion and compression
