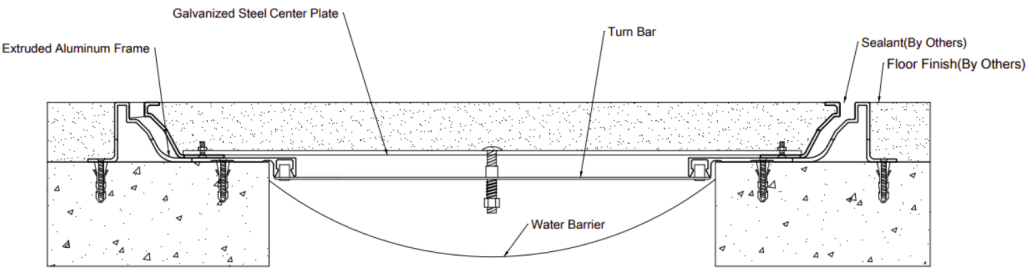

Gambar Teknis
DSZ

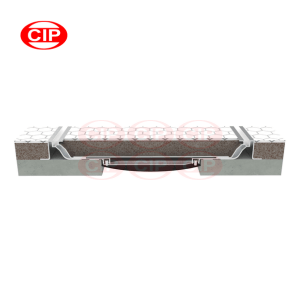

Flush Twin Line Covers
Spesifikasi Umum
| Joint Width (mm) | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Exposed Surface (mm) | 283 | 308 | 358 | 408 | 458 | 508 | 558 | 608 | 658 | 708 |
| Movement Capacity (mm) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Width of Plate (mm) | 190 | 215 | 265 | 315 | 365 | 415 | 465 | 515 | 565 | 615 |
| Thickness of Plate (mm) | 1.5 | 1.5 | 2 | 2 | 3 | 3 | 3 | 5 | 5 | 5 |
Fitur
- Sistem sealant silikon yang serasi dengan garis nat pada berbagai desain lantai
- Efek “Garis Pandang Nol” (Zero Sight Line) yang disukai oleh desainer interior
- Ideal untuk finishing lantai marmer, granit, batu kapur, dan paver kelas tinggi
- Perakitan batang pemusat/pegas kompresi (centering bar/compression spring assembly) yang memposisikan ulang pan setelah pergerakan seismik
- Dilengkapi dengan sistem POP UP
Technical Drawing
DSZ
Flush Twin Line Covers
General Specification
| Joint Width (mm) | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Exposed Surface (mm) | 283 | 308 | 358 | 408 | 458 | 508 | 558 | 608 | 658 | 708 |
| Movement Capacity (mm) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Width of Plate (mm) | 190 | 215 | 265 | 315 | 365 | 415 | 465 | 515 | 565 | 615 |
| Thickness of Plate (mm) | 1.5 | 1.5 | 2 | 2 | 3 | 3 | 3 | 5 | 5 | 5 |
Features
- Silicon sealant system matching grout lines in different floor designs
- “Zero Sight Line” effect preferred by interior designers
- ideal for high grade marble. granite, limestone and paver floor finishes
- Centering bar/compression spring assembly repositioning the pan after seismic movement
- Featuring a POP UP system
