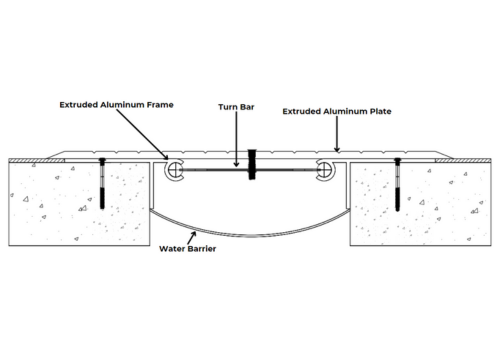

Gambar Teknis
DGJ
Standard Metal Floor Covers
Spesifikasi Umum
| Joint Width (mm) | 100 | 150 | 200 |
| Exposed Surface (mm) | 200 | 250 | 300 |
| Movement Capacity (mm) | 170 | 220 | 270 |
Fitur
- Memenuhi kebutuhan untuk pemasangan di permukaan
- Dirancang dengan tepi miring untuk keselamatan pejalan kaki
- Rangka dasar dan penutup terbuat dari aluminium arsitektural yang tahan lama
- Mudah dipasang
- Solusi ekonomis untuk instalasi retrofit dan pemasangan di permukaan
Technical Drawing
DGJ
Standard Metal Floor Covers
General Specification
| Joint Width (mm) | 100 | 150 | 200 |
| Exposed Surface (mm) | 200 | 250 | 300 |
| Movement Capacity (mm) | 170 | 220 | 270 |
Features
- Satisfy surface-mounted site
- Designed with beveled edges for pedestrian safety
- Durable architectural aluminum base frame and covers
- Easy to install
- Economical solution for retrofit and surface mount installations
