Gambar Teknis
DGCA-1
Heavy Duty Metal Covers
Spesifikasi Umum
| Joint Width (mm) | 100 | 150 | 200 |
| Exposed Surface (mm) | 254 | 304 | 354 |
| Movement Capacity (mm) | 170 | 170 | 170 |
Fitur
- Sistem batang pemusat (centering bar system)
- Sistem penahan beban tinggi yang dinilai untuk lalu lintas kendaraan
- Dirancang untuk ban pneumatik dan ban padat
- Sistem ideal untuk tempat parkir, gudang, akses troli, dll
- Opsi hemat biaya untuk kebutuhan sistem penahan beban tinggi
- Ideal untuk area lalu lintas kendaraan seperti tempat parkir dan gudang

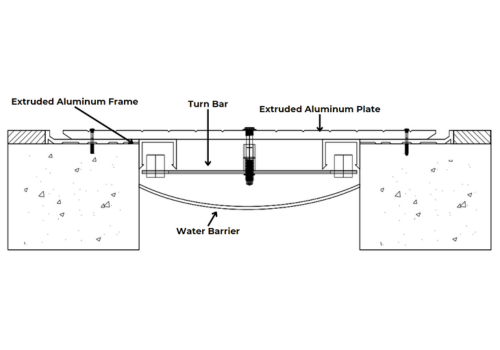

Technical Drawing
DGCA-1
Heavy Duty Metal Covers
General Specification
| Joint Width (mm) | 100 | 150 | 200 |
| Exposed Surface (mm) | 254 | 304 | 354 |
| Movement Capacity (mm) | 170 | 170 | 170 |
Features
- Centering bar system
- High load bearing systems rated for vehicular traffic
- Engineered for pneumatic and solid tires
- Ideal system for parking garages, warehouses, trolley access, etc
- Cost-effective option for high load bearing system needs
- Ideal for vehicular traffic areas such as parking garages and warehouse
