Gambar Teknis
DSJ
Flush Twin Line Covers
Spesifikasi Umum
| Joint Width (mm) | 50 | 100 |
| Exposed Surface (mm) | 162 | 300 |
| Movement Capacity (mm) | 25 | 25 |
Fitur
- Dilengkapi sistem batang pemusat (centering bar system)
- Desain segel ganda (dual seal design) yang mencakup rentang pergerakan yang diperlukan
- Gasket tersedia dalam berbagai pilihan warna
- Desain pasang-tekan (snap-fit design) untuk perakitan di lokasi yang mudah
- Segel fleksibel memberikan kesesuaian yang aman namun tetap mempertahankan fleksibilitas optimal
- Pelat tengah rangka aluminium ekstrusi membuat permukaan terlihat indah
- Ideal untuk finishing lantai karpet, vinil, ubin keramik, dan lainnya

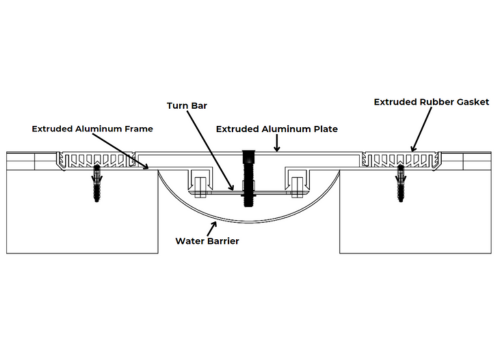

Technical Drawing
DSJ
Flush Twin Line Covers
General Specification
| Joint Width (mm) | 50 | 100 |
| Exposed Surface (mm) | 162 | 300 |
| Movement Capacity (mm) | 25 | 25 |
Features
- Featuring a centering bar system
- Dual seal design provides necessary movement ranges
- Gaskets available in many coordinating designer colors
- Snap-fit design for easy on-site assembly
- Flexible seals provide a secure fit and yet retain optimal flexibility
- Extruded aluminum frame center plate make the surface beautiful
- Ideal for carpet, vinyl, ceramic tile and other floor finishes
