Deskripsi

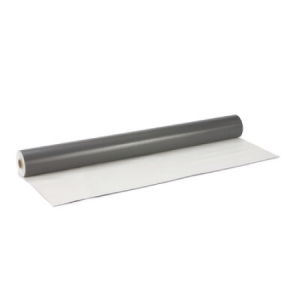

DANOPOL HS 1.5 adalah membran plastis PVC sintetis yang diperkuat dengan serat poliester. Dirancang khusus untuk pekerjaan waterproofing atap datar dan memiliki ketahanan terhadap radiasi UV.

Spesifikasi Umum

  • Panjang (cm): 2000
  • Standar Pengukuran Panjang: EN 1848-2
  • Lebar (cm): 108
  • Standar Pengukuran Lebar: EN 1848-2
  • Ketebalan (mm): 1,5
  • Warna: Abu-abu muda
  • Kode Produk: 210077

DANOPOL HS 1.5

Single Ply PVC-p 1.5 mm membrane. Hot-air welded

Spesifikasi Data

Mass per unit area (nominal)(kg/m²) 1.9 –
Longitudinal elongation at break (%) >220 –
Transversal elongation at break (%) Froof EN 13501-5
Longitudinal & transversal dimensional stability < 0.09 EN 1107-2
Humidity resistance factor 20.000 ± 30% EN 1931
Water vapour permeability (m) 20.000 ± 30% EN 1931
Flexibility at low temperature (°C) < -30 EN 495-5
Reaction to fire E  UNE-EN 13501-1
Longitudinal tensile strength (N/5cm) > 750 UNE-EN 12311-2: Metodo A
Longitudinal tensile strength (N/mm) > 10.3 –
Longitudinal resistance to tearing (nail shank) (N) >150 UNE-EN 12310-2
Transversal resistance to tearing (nail shank) (N) >150 UNE-EN 12310-2
Overlaps resistance (Shear of overlaps) (N/50mm) >600 EN 12317-2
Overlaps resistance (Peeling of overlaps) (N/50mm) >250 EN 12316-2
Hazardous substances PND –
  • Pengerjaan waterproofing saluran (EN 13362).
  • Sistem waterproofing atap yang dipasang secara mekanis (EN 13956).
  • Pengerjaan waterproofing pada reservoir dan bendungan (EN 13361).
  • Pengerjaan waterproofing terhadap cairan dalam konstruksi terowongan dan struktur bawah tanah (EN 13491).
  • Daya serap pergerakan struktural yang baik.
  • Kekuatan tarik yang tinggi.
  • Resistansi tinggi terhadap tusukan.
  • Disambung dengan las udara panas: Sistem bebas api.
  • Elastisitas tinggi.
  • Resistansi tinggi terhadap sobekan.
  • Memungkinkan adaptasi terhadap berbagai jenis geometri.
  • Tahan terhadap UV.
  • Sistem dengan Deklarasi Produk Lingkungan (EPD), ekolabel tipe 3.
  • Sistem terpasang dengan fiksasi metalik, plastik, atau induksi.

Description

DANOPOL HS 1.5 is a synthetic PVC plasticized membrane, Reinforced with polyester net carrier. Designed for flat roof waterproofing, U.V. resistant.

General Specification

  • Length (cm): 2000
  • Length measurement standard: EN 1848-2
  • Width (cm): 108
  • Width measurement standard: EN 1848-2
  • Thickness (mm): 1,5
  • Colour: Light grey
  • Product code: 210077

DANOPOL HS 1.5

Single Ply PVC-p 1.5 mm membrane. Hot-air welded

Data Specification

Mass per unit area (nominal)(kg/m²) 1.9 –
Longitudinal elongation at break (%) >220 –
Transversal elongation at break (%) Froof EN 13501-5
Longitudinal & transversal dimensional stability < 0.09 EN 1107-2
Humidity resistance factor 20.000 ± 30% EN 1931
Water vapour permeability (m) 20.000 ± 30% EN 1931
Flexibility at low temperature (°C) < -30 EN 495-5
Reaction to fire E  UNE-EN 13501-1
Longitudinal tensile strength (N/5cm) > 750 UNE-EN 12311-2: Metodo A
Longitudinal tensile strength (N/mm) > 10.3 –
Longitudinal resistance to tearing (nail shank) (N) >150 UNE-EN 12310-2
Transversal resistance to tearing (nail shank) (N) >150 UNE-EN 12310-2
Overlaps resistance (Shear of overlaps) (N/50mm) >600 EN 12317-2
Overlaps resistance (Peeling of overlaps) (N/50mm) >250 EN 12316-2
Hazardous substances PND –
  • Channel waterproofing (EN 13362).
  • Mechanically fastened roof waterproofing systems (EN 13956).
  • Waterproofing of reservoirs and dams (EN 13361).
  • Waterproofing against fluids in the construction of tunnels and underground structures (EN 13491).
  • Good absorption of structural movements.
  • High tensile strength.
  • High resistance to piercing.
  • Hot air welded: Flame-free system
  • Great elasticity.
  • High resistance to tearing.
  • Allows for adaptation to any type of geometry.
  • UV resistant.
  • System with Environmental Product Declaration (EPD), type 3 ecolabel.
  • System fixed by metallic, plastic or induction fixation.
