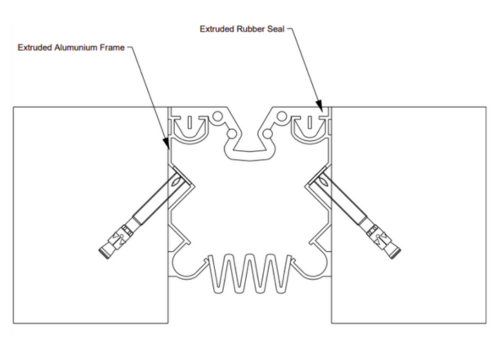

Gambar Teknis
DQJS
Flush Rubber Wall Covers
Spesifikasi Umum
| Joint Width (mm) | 50 | 100 | 150 | 200 |
| Exposed Surface (mm) | 50 | 100 | 150 | 200 |
| Movement Capacity (mm) | 50 | 50 | 50 | 50 |
Fitur
- Cocok untuk lebar sambungan 50-250 mm
- Desain yang berbeda untuk tingkat dekoratif pelapis (coating) dan ubin
- Sirip segel yang unik (unique seal barbs) memberikan keterikatan yang aman pada rangka
- Dirancang untuk pergerakan seismik multi-arah
- Pemasangan lebih mudah
- Tahan terhadap UV, ozon, hujan asam, sebagian besar bahan kimia, dan suhu ekstrem
- Permukaan segel tidak mudah melorot dan tetap rata
- Tersedia dalam panjang berkelanjutan pada sebagian besar aplikasi
- Rangka memungkinkan finishing dengan join compound atau penutup dinding (wall covering)
Technical Drawing
DQJS
Flush Rubber Wall Covers
General Specification
| Joint Width (mm) | 50 | 100 | 150 | 200 |
| Exposed Surface (mm) | 50 | 100 | 150 | 200 |
| Movement Capacity (mm) | 50 | 50 | 50 | 50 |
Features
- Suitable for joint width 50-250mm
- Different designs for coating and tile decorative level
- Unique seal barbs provide for secure engagement in the frame
- Enginered for multi-directional seismic movement
- Easier installation
- Resistant to UV, ozone, acid rain, most chemicals and extreme temperatures
- The face of the seal resists sagging and remains flat
- Continous lengths in most applications
- Frame allows for finishing with joint compound or wall covering
